Top Quality Galvanized Steel Structures Bailey Bridge China Supplier
Description:
Top Quality Galvanized Steel Structures Bailey Bridges are portable steel bridge,which have been widely used in various fields,The surface protection can be paint or hot-dip galvanized. its most important feature is bear carrying capacity,to achieve a variety of spans, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple tools and manpower.
Specifications:
| Single lane: | Standard roadway: 3.15m / 4.2m | Single lane: 30ft-200ft |
| Double lane: | Standard roadway:7.35m | Double lane:30ft-180ft |
| Load: design according to different requirements | Deck: steel deck/timber deck |
| Bridge type: CB100, CB200 | |
Introduction
Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world
Features
1. Steel bridge generally USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.
2.High strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-respect
3.Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
4. Steel bridge is easy to repair and replace,long lifetime,material can be recycled.
5.Steel bridge is suitable for industrialized manufacture and very convenient to transport.
Advantage
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
long fatigue life and great stability
being capable of an alternative span, loading capacity
Possessing the features of simple structure,
Application
Beam bridge,cable-stayed bridge,arch bridge,rigid frame bridge,suspension bridge. passenger foot-bridge
Mixture form to erect all kinds of
The compact 200 panel bridge: The compact 200 panel bridge is similar to the compact 100 panel
bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes.
Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.
Bolt-connected components use the orienting sleeve- fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.
Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements
are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.
Competitive Advantage:
Light weight
Heavy loading capacity
Great stability
Long fatigue life
Low cost
Easy and fast erection
Product Tags:
|
|

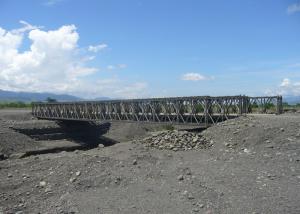

4.2m Galvanized Steel Structures Bailey Bridge Images
|
